UB640 - VL1-1

  • Frequency range : 7 - 50 Mhz
  • Rotative dipole ½ full size (folded in 40 meters)
  • Power (PeP) : 3500 watt
  • SWR: 1.1 - 1.5 on all band (*)
  • Longest elements : 11 meter
  • Max wind-area : 0,47
  • Rotating radius : 5,9 meters
  • Weight : 9 Kg
  • Controller : Included
  • Mast diameter : 50 mm

(*) Depends on the height of installation.

UB640 - VL1-3

  • Frequency range : 7 - 50 Mhz (50 Mhz it requires kit optional)
  • 3 elements yagi : 6-10-12-15-17-20 meters
  • 1 elements dipole folded 30-40 meters
  • Gain (dBd) : 6,1
  • F/B ratio (dB) : 25/30
  • Power (PeP) : 3500 watt
  • SWR: 1.1 on all band (*)
  • Longest elements : 11 meter
  • Boom length : 4,86 meter
  • Boom diameter : square 60x60 mm
  • Max wind-area : 0,77
  • Rotating radius : 5,9 meters
  • Weight : 29 Kg
  • Controller : Included
  • Mast diameter : 50 mm ( 60mm possibility)

(*) This model in 30 meter have an SWR of 1.6-2.5 depends on the height of installation.


UB640 - VL2-3

  • Frequency range : 7 - 50 Mhz
  • 3 elements yagi : 6-10-12-15-17-20 meters
  • 2 elements yagi folded 30-40 meters
  • Gain (dBd) : 6,1 (4,2 db 30-40 meters)
  • F/B ratio (dB) : 25/30 (15 db 30-40 meters)
  • Power (PeP) : 3500 watt
  • Longest elements : 11 meter (5,5 + 5,5)
  • Boom length : 4,50 meter
  • Boom diameter : square 60x60 mm
  • Max wind-area : 0,97
  • Rotating radius : 6,0 meters
  • Weight : 35 Kg
  • Controller: Included
  • Mast diameter : 50 mm ( 60mm possibility)

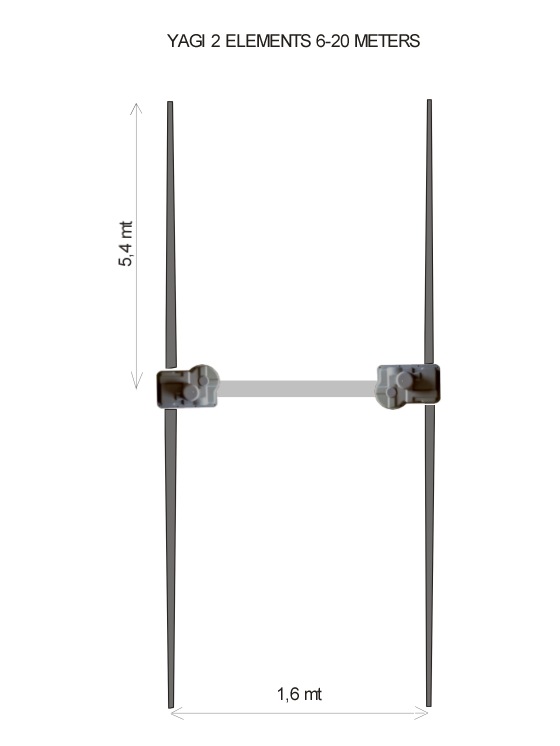

2 Elements Yagi 6-20 meters

  • Frequency range : 14 - 50 Mhz
  • 2 elements yagi : 6-10-12-15-17-20 meters
  • Gain (dBd) : 4,2
  • Gain ( dBi) : 6,35
  • F/B ratio (dB) : 16
  • Power (PeP) : 3500 watt
  • Longest elements : 10,8 meter
  • Boom length : 1,62 meter
  • Boom diameter : 60x60 mm
  • Max wind-area : 0,44
  • Rotating radius : 5,46 meter
  • Mast diameter : 50 mm
  • Weight : 13.5 Kg
  • Controller : Included

2 Elements Yagi 6-40 meters

  • Frequency range : 7 - 50 Mhz
  • 2 elements yagi : 6-10-12-15-17-20 meters
  • 1 elements folded dipole : 30-40 meters
  • Gain (dBd) : 4,2
  • Gain ( dBi) : 6,35
  • F/B ratio (dB) : 16
  • Power (PeP) : 3500 watt
  • Longest elements : 11 meter
  • Boom length : 1,62 meter
  • Boom diameter : 60x60 mm
  • Max wind-area : 0,44
  • Rotating radius : 5,55 meters
  • Mast diameter : 50 mm
  • Weight : 16.5 Kg
  • Controller : Included

3 Elements Yagi 6-20 meters

  • Frequency range : 14 - 50 Mhz
  • Gain (dBd) : 6,1
  • Gain ( dBi) : 8,25
  • F/B ratio (dB) : 25/30
  • Power (PeP) : 3500 watt
  • Longest elements : 10,8 meter
  • Boom length : 4,85 meter
  • Boom diameter : Square 60x60 mm
  • Max wind-area : 0,67
  • Rotating radius : 5,90 meters
  • Mast diameter : 50 mm (60mm possibility)
  • Weight : 28 Kg
  • Controller : Included

UB20-MX - 3 Elem. Small Yagi 6-20 meters

  • Frequency range : 14 - 50 Mhz
  • 3 elements yagi : 6-10-12-15 meters
  • 2 elements yagi moxon : 17-20 meters
  • Gain (dBd) : 5,8
  • Gain (dBi) : 7,95
  • F/B ratio (dB) : 25/30
  • Power (PeP) : 3500 watt
  • Longest elements : 7 meter
  • Boom length : 2,9 meter
  • Boom diameter : Square 60x60 mm
  • Max wind-area : 0,47
  • Rotating radius : 3,5 meters
  • Mast diameter : 50 mm
  • Weight : 19,5 Kg

UB50 - 3 Elements Yagi 6-40 meters

  • Frequency range : 7 - 50 Mhz
  • 3 elements yagi : 6-10-12-15-17-20 meters
  • 1 elements folded dipole : 30-40 meters
  • Gain (dBd) : 6,1
  • Gain (dBi) : 8,25
  • F/B ratio (dB) : 25/30
  • Power (PeP) : 3500 watt
  • Longest elements : 11 meter
  • Boom length :5,12 meter
  • Bomm diameter : square 60x60 mm
  • Max wind-area : 0,67
  • Rotating radius : 6,0 meters
  • Weight : 29 Kg
  • Controller : Included
  • Mast diameter : 50 mm. ( 60mm. possibility)

3 Elements Yagi 6-40 meters

  • Frequency range : 7 - 50 Mhz
  • 3 elements yagi : 6-10-12-15-17-20 meters
  • 2 elements yagi : 30-40meters
  • Gain (dBd) : 6,1
  • Gain (dBi) : 8,25
  • F/B ratio (dB) : 25/30
  • Power (PeP) : 3500 watt
  • Longest elements : 21,5 meter
  • Boom length : 4,85 meter
  • Boom diameter : Square 80x80 mm
  • Max wind area : 1,35
  • Rotating radius : 11,0 meters
  • Mast diameter : 50 mm (60-65 possibility)
  • Weight : 67 Kg
  • Controller : Included

4 Elements Yagi 6-20 meters

  • Frequency range : 14 - 50 Mhz
  • Gain (dBd) : 8
  • Gain (dBi) : 10,15
  • F/B ratio (dB) : 25
  • Power (PeP) : 3500 watt
  • Longest elements : 11 meter
  • Boom length : 9,7 meter
  • Boom diameter : Square 60x60 mm
  • Max wind-area : 0,95
  • Rotating radius : 7,29 meters
  • Mast diameter : 50mm (60-65 possibility)
  • Weight : 45 Kg
  • Controller : Included

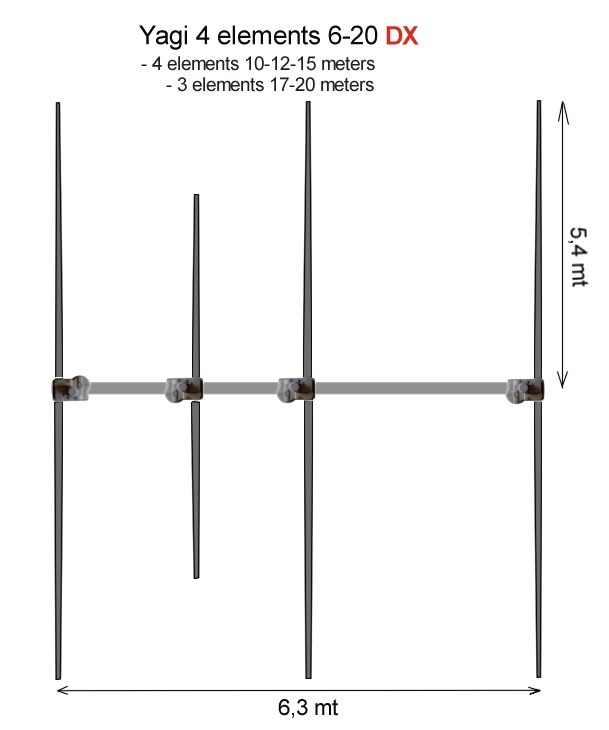

4 Elements Yagi 6-20 meters DX

  • Frequency range : 14 - 50 Mhz
  • 4 elements yagi :10-12-15 meters
  • 3 elements yagi :17-20 meters
  • Gain 10-12-15 meters (dBd / dBi) : 8 / 10,15
  • Gain 17-20 meters (dBd / dBi) : 6 / 8,15
  • F/B ratio (dB) : 25
  • Power (PeP) : 3500 watt
  • Longest elements : 11 meter
  • Boom length : 6,3 meter
  • Boom diameter : Square 60x60 mm
  • Max wind-area : 0,75
  • Rotating radius : 6,25 meters
  • Mast diameter : 50mm (60mm possibility)
  • Weight : 35 Kg
  • Controller : Included

4 Elements Yagi 6-40 meters

  • Frequency range : 7 - 50 Mhz
  • 4 elements yagi : 6-10-12-15-17-20 meters
  • 3 elements yagi : 30-40 meters
  • Gain (dBd) : 8
  • Gain (dBi) 10,25
  • F/B ratio (dB) : 25
  • Power (PeP) : 3500 watt
  • Longest elements : 21,5 meter
  • Boom length : 9,85 meter
  • Boom diameter : Square 80x80 mm
  • Max wind area : 2,15
  • Rotating radius : 11,85 meters
  • Mast diameter : 65 mm
  • Weight : 117 Kg
  • Controller : Included

6 Elements Yagi 6-20 meters DX

  • Frequency range : 14 - 50 Mhz
  • 6 elements yagi : 10-12-15 meters
  • 4 elements yagi : 17-20 meters
  • Gain 10-12-15 meters (dBd/dBi) : 9,5 / 11,65
  • Gain 17-20 meters (dBd/dBi) : 8,4 / 10,55
  • F/B ratio (dB) : 25
  • Power (PeP) : 3500 watt
  • Longest elements : 11 meter
  • Boom length : 11,3 meter
  • Boom diameter : 80x80 mm
  • Max wind-area : 1,15
  • Rotating radius : 7,41 meters
  • Mast diameter : 50 mm (60-65 possibility)
  • Weight : 55 Kg
  • New Controller DX Series : Included

YAGI UB40-MX

  • Frequency range : 7 - 50 Mhz
  • 3 elements yagi : 6-10-12-15-17-20-30 meters
  • 2 elements yagi moxon : 40 meters
  • Gain (dBd) : 6,1
  • Gain (dBi) : 8,25
  • F/B ratio (dB) : 25/30
  • Power (PeP) : 3500 watt
  • Longest elements : 15 meter
  • Boom length : 5,5 meter
  • Boom diameter : Square 80x80 mm
  • Max wind area : 1,15
  • Rotating radius : 7,87 meters
  • Mast diameter : 50 mm (60-65 possibility)
  • Weight : 63 Kg
  • Controller : Included

TRUSS ELEMENTS KIT

  • For Antennas:
  • 3 Elements Yagi UB-50
  • 2 Elements Yagi 6-40
